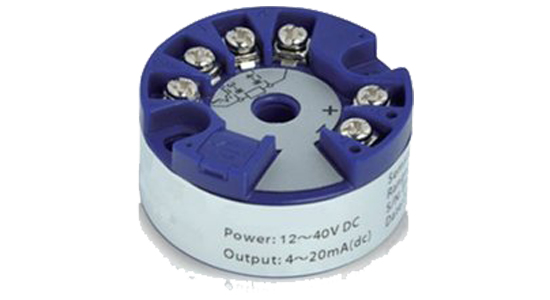

TEMPERATURE TRANSMITTER

At elman, we boast of a wide variety of TEMPERATUIRE TRANSMITTER that can be used for all kinds of applications.

Specification:

Transmitter Accept input RTD.
Thermocouple Transmitter output available 4-20 mA ( 2/3/4 wires).
Out/ put Range -999 to 9999 counts DIN Rail / Head mounting.
Power supply : 12-36 VDC (or )230 VAC Output Load at 20 mA.
600 ohms maximum @ 24 VDC With Display optional.
Range select at factory Single/ Dual Input optional.

HUMIDITY TEMPERATURE SENSOR

At elman, we boast of a wide variety of HUMIDITY TEMPERATURE SENSOR that can be used for all kinds of applications.

Specification:

High accuracy, quick response.
Good crossing-over and it also Use craftwork of SMD and so own extremely small body.
Stable and Reliably performance.
Temperature Range : 0-60 °C with RTD Pt 100 output.
Humidity Range : 0 to 100 % Rh with 0-3 VDC output.
5 VDC operated Optional with temperature and cable.

TEMPERATURE / HUMIDITY TRANSMITTER

At elman, we boast of a wide variety of TEMPERATURE / HUMIDITY TRANSMITTER that can be used for all kinds of applications.

Specification:

Transmitter Accept input RTDs, Voltage ,current Process – Temperature and Humidity.
Temperature Range : 0to50DegC.
Temperature Output : 0/4-20 mA(2Wire).
Humidity Range : 0to100%RH.
Humidity Output : 0/4-20mA(2Wire).
Accuracy : ±2%rh/±0.3k.
Power supply : 12-36VDC.
Output Load at 20 m A , 600 ohms maximum @ 24 VDC With Display optional , Range select at factory Single/ Dual Input optional , wall mounting.

HUMIDITY TEMPERATURE PROBE

At elman, we boast of a wide variety of HUMIDITY TEMPERATURE PROBE that can be used for all kinds of applications.

Specification:

Measures Humidity, Temperature and Calculates Dew / Frost Point.
Range of Application : 0…100%rh / -50…100ºC.
Standard Scaling : 0…1 V = 0…100%rh / -40…60ºC.
Saves up to 2,000 measurement pairs Use as simulator for system validation Probe with Adjustment Profile.
“Standard” Factory Adjustment Certificate Adjusted at 23°C and 10,35.
80%RH UART Interface and freely scalable Analog signals 0…1 V Accuracy ±1%rh/±0.2k.
Supply 15…40 VDC or 12…28 VAC/ <100 Ma.

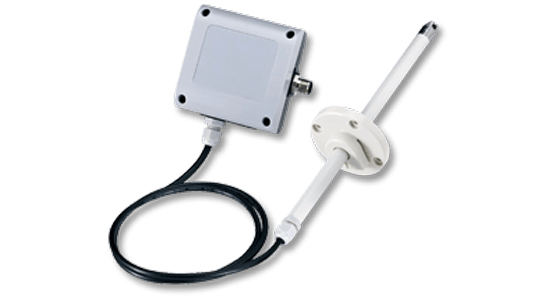

HUMIDITY TEMPERATURE TRANSMITTER

At elman, we boast of a wide variety of HUMIDITY TEMPERATURE TRANSMITTER that can be used for all kinds of applications.

Specification:

LCD or LED Indicator.
Controller, Recorder, Data Logger.
Scanner Wall, Space & Duct mounting, AC or DC Power operated.
Calibration and data logging Software ROTRONIC HW4.
The elman series is the latest development in inexpensive HVAC transmitters for relative humidity and temperature.

HIGH TEMPERATURE HUMIDITY TRANSMITTER

At elman, we boast of a wide variety of HIGH TEMPERATURE HUMIDITY TRANSMITTER that can be used for all kinds of applications.

Specification:

Measures Humidity.
Temperature and Calculates Dew / Frost Point Temperature Compensated humidity signal Standard Scaling : 4…20mA = 0…100%rh / -50…200 ºC.
Temperature Ready for direct 3 – wire RTD connection housing and can also be supplied in an industry standard IP65 case Probe with Adjustment Profile “Standard” Factory Adjustment Certificate Adjusted at 23°C and 10,35,80%rh over a wide -50.
200ºC range with integrated cable Accuracy ±1%rh/±0.2k.
Power supply of 10-35 VDC or 12-24 VAC.

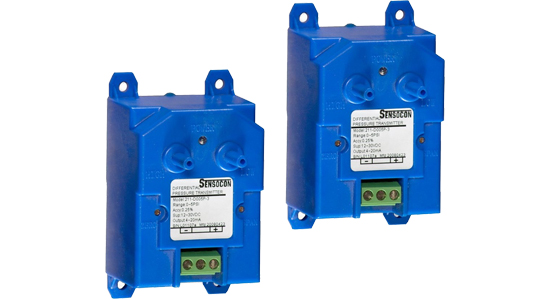

DIFFERENTIAL PRESSURE TRANSMITTER

At elman , we boast of a wide variety of DIFFERENTIAL PRESSURE TRANSMITTER that can be used for all kinds of applications.

Specification:

Differential pressure and send the corresponding 4-20 mA output signal.
With Large Display, Indicator.
Controller, Recorder, Data Logger.
Scanner Relay Output 8 Amps @ 250 V AC, 5A @30 V DC.
Retransmission output 4-20 mA.

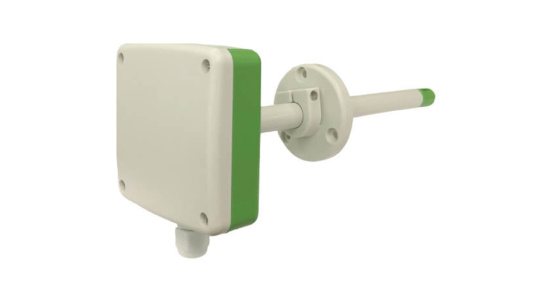

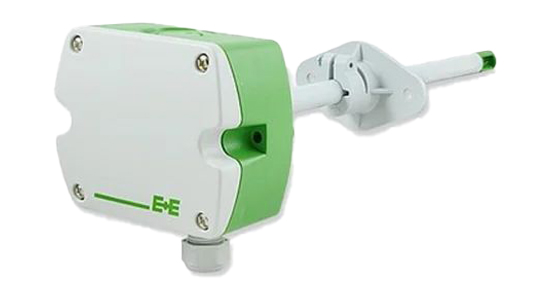

AIR VELOCITY FLOW TRANSMITTER

At Elman, we boast of a wide variety of AIR VELOCITY FLOW TRANSMITTER that can be used for all kinds of applications.

Specification:

The Air Velocity Sensor function in line with the Principle of hot film anemometry.
Result of the air velocity of up to 40m/s energy efficiency.
Long-term stability and reproducibility Low angular Dependence.
Easy Installation Adjustable to application requirements.
Ranges available 0…10 , 15, 20 m/s ( select by jumper).
Output available 0-10 V DC / 4-20 mA Operating Temperature 0 …50 º C.

AIR VELOCITY TEMPERATURE TRANSMITTER

At elman, we boast of a wide variety of AIR VELOCITY/TEMPERATURE TRANSMITTER that can be used for all kinds of applications.

Specification:

Measuring range : from 0 -5 m/s to 30 m/s from -20 to +80 °C.
Easy mounting with the 1/4 turn system with wall-mount plate unit selectable m/s and fpm.
ABS IP 65 Housing Selectable Range : 0-5/0-10/0-15/0-20/0-30 m/s Dip switch selection.
With or without display , 0-10 V or 4-20 mA output, active sensor.
power supply 24 Vac/Vdc (3-4 wires) or 4-20 mA output.
passive loop, power supply 18 to 30 V dc (2 wires).

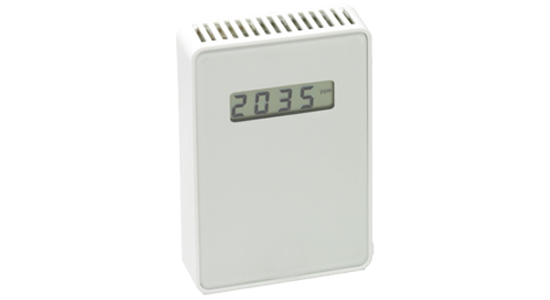

CO2 INDOOR TRANSMITTER

At elman, we boast of a wide variety of CO2 INDOOR TRANSMITTER that can be used for all kinds of applications.

Specification:

Ranges available 0…2000/5000 ppm, 10…90%rH,-5…55 º C.
Output available 0… 5/10 VDC / 4-20mA.
Operating Temperature 0 …50 º C , AC/DC operated.
Measuring carbon dioxide.
1 Analog output or ModbusRS-485.
OptionalanalogoutputRS-485.
Easy installation and maintenance.

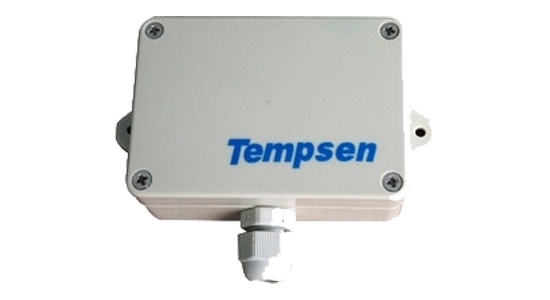

TEMPERATURE HUMIDITY TRANSMITTER

At elman, we boast of a wide variety of TEMPERATURE HUMIDITY TRANSMITTER that can be used for all kinds of applications.

Specification:

The standard humidity output of EE10 transmitters is 4 – 20 mA or 0 – 10 V.
The temperature output signal can be active or passive.
All EE10 versions can be equipped with a good legible LCD display.
110 V AC supply.
Dual/Single output, Single Display.
Jumbo Display, with RTDs.
Thermocouples, Transmitters, Enclosure.
Universal Power supply , metal case , wall mounting.
Retransmission output 4-20mA and loop powered indicator etc., .

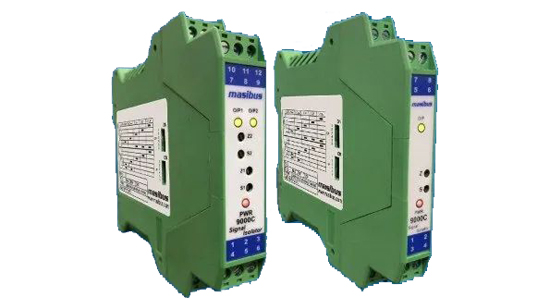

UNIVERSAL SIGNAL ISOLATOR

At elman, we boast of a wide variety of UNIVERSAL SIGNAL ISOLATOR that can be used for all kinds of applications.

Specification:

Input (Single or dual) : Voltage(AC/DC)/Current(AC/DC)/Power(KW/W).
Transmission O/P (Dual/Single) : Linear current (4 20 mA) or voltage (0-10VDC).
Power supply : 230VACor110VAC50 Hz.
Re transmission accuracy : 0.2%FS± 1 Digit.
Customized Transducer as per your application.
Size(W x H) : 70×100(DIN rail).
Other features : Input calibration ( zero/span).
Operating ambient Temp. : 10°C~60°C.
Humidity : <90%RH ultra-compact size, DIN Rail-mounted, Dual channel, Acts as signal isolator, Acts as signal repeater.

VOLTAGE CURRENT POWER TRANSMITTER

At elman, we boast of a wide variety of VOLTAGE/CURRENT/POWER TRANSMITTERS that can be used for all kinds of applications.

Specification:

Input (Single or dual) : Voltage (AC/DC)/Current(AC/DC)/Power(KW/W).
Transmission O/P(Dual/Single) : Linear current(420mA)or voltage (0-10VDC).
Power supply : 230VACor110VAC ,50Hz.
Retransmission accuracy : 0.2%FS±1Digit Customized Transducer as per your application.
Size(W x H) : 70×100(DIN rail).
Other features : Input calibration(zero/span).
Operating ambient Temp .: 10C~60°C.
Humidity : <90%RH ultra-compact size, DIN Rail-mounted, Dual channel, Acts as signal isolator, Acts as signal repeater.

NON CONTACT HIGH TEMPERATURE TRANSMITTER

At elman, we boast of a wide variety of NON CONTACT HIGH TEMPERATURE TRANSMITTER that can be used for all kinds of applications.

Specification:

Accurate glass temperature measurements on float glass lines, container glass machines.
Bulb manufacturing, automotive glass tempering lines.
The production of solar panels in the range of 100°C up to 1650°C.
Double laser aiming marks location and exact spot size at any distance.
High resolution optics with 1mm spot size Optics 70:1 or 45:1 with selectable focus.
Compact sensor head size Usable up to 85°C ambient temperature without cooling and automatic laser switch off at 50°C.
Cooling and protection accessories for harsh environmental conditions.

ONLINE TEMPERATURE TRANSMITTER

At elman, we boast of a wide variety of ONLINE TEMPERATURE TRANSMITTER that can be used for all kinds of applications.

Specification:

Wide temperature range: -40°C to 1030°C.
Response time: 25 MS Optical Resolution 15:1.
Green LED alarm indication.
Aiming support.
Self-diagnostic Ambient temperature rating up to 80°C without cooling.
Scalable analog output: 0-10 V or 0-5 V + alarm output or digital output USB programming interface.
Direct serial 9.6 kBaud interface, Wide power range 5-7, 12-28 V DC.

FLUSH MOUNTING PRESSURE TRANSMITTER

At elman, we boast of a wide variety of FLUSH MOUNTING PRESSURE TRANSMITTER that can be used for all kinds of applications.

Specification:

Type : Flush Mounted.
Range : 10 m Bar ~ 700 Bar.
Output : 4 – 20mA, 0 to 5V, 0.5 to 4.5V, 1 to 5 V, 0 – 10V.
Accuracy : ± 0.5% of F.
Temperature Operating : -40 to 125°C.
Compensated Temperature Range : -20 to 85°C.
Over Pressure : 2X.

SPAN ZERO PRESSURE TRANSMITTER

At elman, we boast of a wide variety of SPAN/ZERO PRESSURE TRANSMITTER that can be used for all kinds of applications.

Specification:

High Strength Stainless Steel Construction.
Wide Operating Temperature Range Low Static and Thermal Errors.
EMI/RFI Protection Compatible with Wide Range of Liquids and Gases -40 to 85º C.
Operating Temperature , Accuracy: <±0.5% of FS Ranges : -1 Bar to 700 Bar.
Universal Supply 10-28VDC Output : 4-20mA ( 2 wire).
TC zero and Span <±1.5% of FS Process connection : ½ inch BSPM.
Gage and absolute.

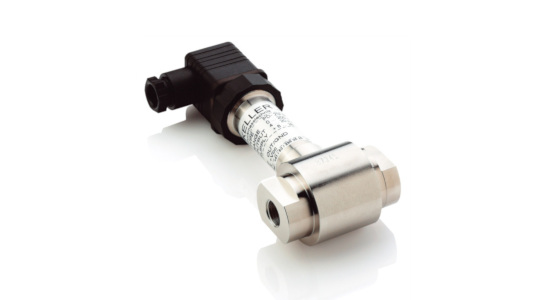

HIGH ACCURACY MASTER PRESSURE TRANSMITTER

At elman, we boast of a wide variety of HIGH ACCURACY MASTER PRESSURE TRANSMITTER that can be used for all kinds of applications.

Specification:

Over voltage protected to 16Vdc in both positive and reverse polarity IP65.
NEMA 4, 100% Stainless Steel Isolation withstands more than 10 million pressure cycles without failure Advanced Digital Compensation of both Temperature and Non Linearity -25 to 85º C Operating Temperature.
Accuracy : 0.05% FS BFSL.
Ranges : -1 Bar to 700 Bar.
Universal Supply 9-30VDC Output :0-5VDC, 0-10 V DC (3Wire).
4-20mA ( 2 wire) Process connection : ¼ inch BSPM, gage and absolute.

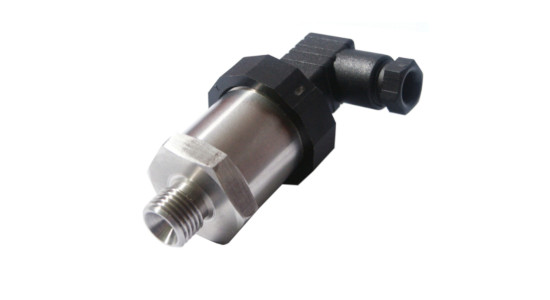

INDUSTRIAL LOW COST PRESSURE TRANSMITTER

At elman, we boast of a wide variety of INDUSTRIAL LOW COST PRESSURE TRANSMITTER that can be used for all kinds of applications.

Specification:

Solid piece of 17-4PH stainless steel (316L optional) withstands more than 10 million pressure cycles without failure.
Heavy Industrial – High EMI Rated.
Extended temperature range : -40 to 125º C Operating Temperature.
Accuracy : 0.25% FS BFSL.
Ranges : 0 Bar to 1000 Bar.
Universal Supply 9-30VDC Output : 1-5VDC, 0-10 VDC (3Wire), 4-20mA ( 2 wire).
Process connection : ¼ inch BSPM, only Gage.

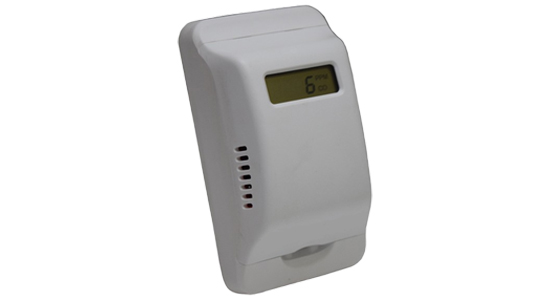

CO2 TRANSMITTER

At elman, we boast of a wide variety of CO2 TRANSMITTER that can be used for all kinds of applications.

Specification:

It measures both CO2 concentration and temperature.
elman is available both with and without LCD display.
FIXED installation in the climate zone as well Measure CO2 0…2000ppm.
Temperature 0…50 º C Output CO2 /Temp : 0 … 10VDC/4…20mA.
POWER supply : 24VDC/AC.
With RS485, CO2 LCD/LED Indicator.
Large Display, Controller.

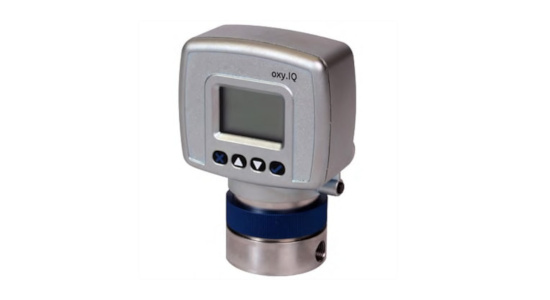

O2 TRANSMITTER AND DUCT

At elman, we boast of a wide variety of O2 TRANSMITTER AND DUCT that can be used for all kinds of applications.

Specification:

elman is available both with and without LCD display.
FIXED installation in the climate zone as well Measure CO2 0…2000ppm.
Temperature 0…50 º C Output CO2 /Temp : 0 … 10VDC/4…20mA.
POWER supply : 24VDC/AC.
With RS485, CO2 LCD/LED Indicator, Large Display, Controller, Recorder, Scanner.
Data logger and also available moisture in oil.
Temperature, Humidity, Air flow, Pressure Transmitter etc., .
