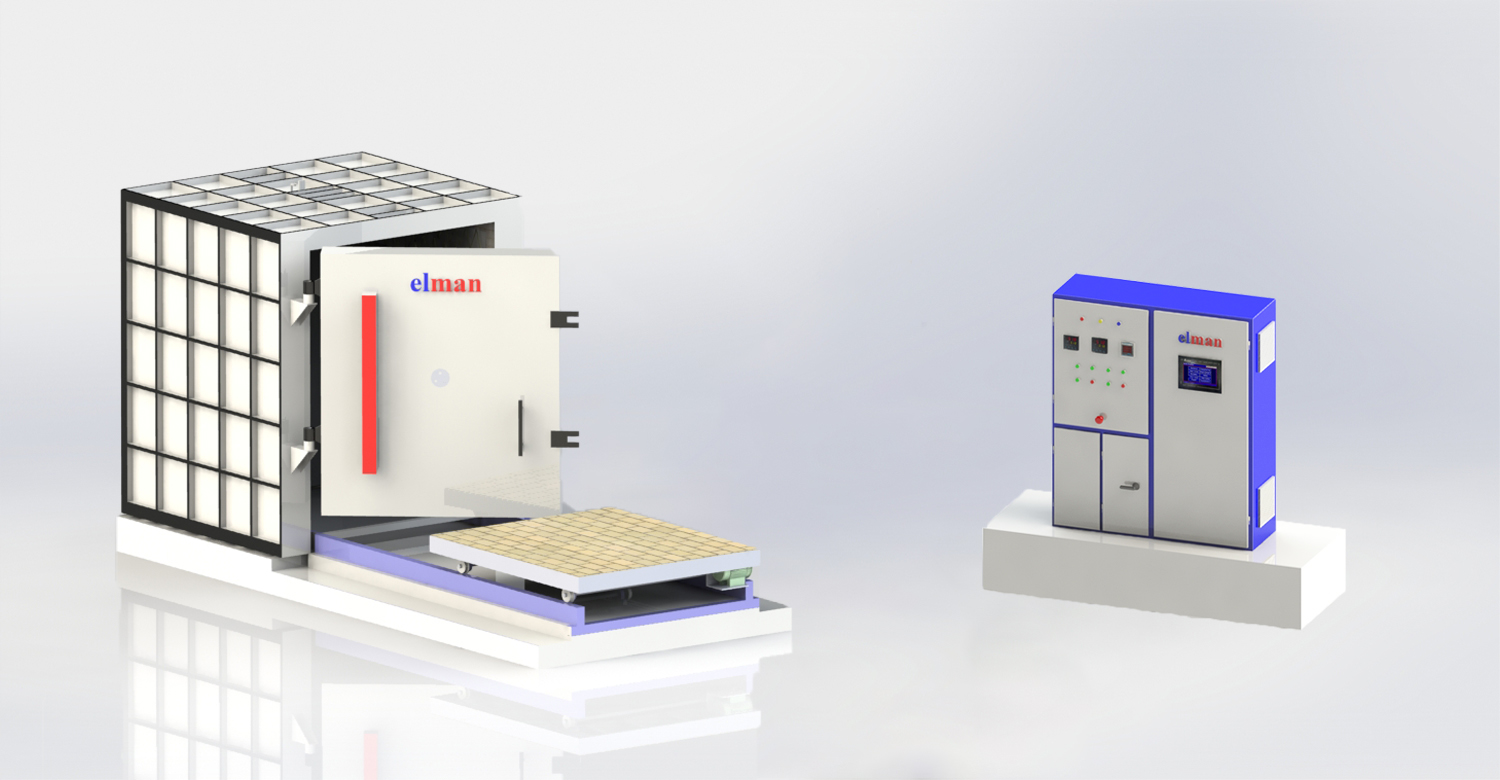

Bogie Hearth Furnace by elman
Are you looking for one of the reliable BOGIE HEARTH FURNACE manufacturers? elman is the name you should have in mind. From the very beginning, we have been involved in the manufacturing process and experience. We understand all the important points that can improve the operation and longevity of our products.
elman is a Bogie Hearth Furnace Manufacturer. We are serving remarkable quality as per customer service standards – NADCAP, CQI-9 NORMS and AMS 2750 STANDARDS. elman Furnace has built a large number of Fuel fired and Electrically heated Bogie Hearth Furnace furnaces for the two decades.elman has a full range of Bogie Hearth type Heat Treatment Furnaces up to a capacity of 100T to offer to Foundry Cast House, Pressure Vessels, Heavy Structural, Forgings and other metal industries with high temperature range.
These furnaces can be offered with single/double doors with single/double bogies to meet the customer’s requirement. An intermediate door to divide a large furnace in two parts/chambers can also be designed, if desired.
The materials are loaded on the bogie with the help of EOT crane or any mechanical device and the loaded bogie is pushed into the furnace over rails by means of Electro-mechanical rack and pinion or rope and drum type bogie drive mechanism.
We offer customization facilities to the customers and fabricate the car bottom furnace for annealing heat treatment process. as per client’s requirement.
Generally, our Bogie Hearth furnaces are lined with ceramic fiber modules/blankets on the side wall, roof and door and the hearth of the furnace will be provided with a combination of high/medium grade aluminum bricks backed-up by insulation bricks to minimize the skin temperature.
Specification
| Title | Description |
|---|---|
| Temperature | Up to 1200° C |
| Chamber design | Cylinder/Rectangular |
| Insulation | Ceramic Fiber blankets / Modules, Conventional Refractory Brick Lining |
| Heating Media Options | Ele /Gas / Diesel / Oil fired |
| Furnace classification | Class 2, Class 3 |
| Heating Element | Ni/Cr – Kanthal etc., |
| Instrument option | Programmable temperature controller |
Related products
Interested to Know further?
Click on get quotes button below
- Flexibility of operations.
- Easy and precise movement of heavy loads.
- Low power consumption.
- Excellent Temperature uniformity.
- High-performance reliability.
- Support frame will be made of refractory material or heat resistant steel.
- Tempering
- Normalizing
- Post Weld Heat Treatment
- Wire Annealing
- Isothermal Annealing
- Case Hardening
- Blueing
- Austempering
- Austenitizing
- Homogenizing
- Long service life.
- Sturdy construction.
- Efficient.
- Non-corrosive.
- Highly functional.
- Advanced of high-purity ceramic fiber insulation
- Heated from four sides (from both sides, rear wall, door and bottom).
- Uniform temperature distribution in furnace chamber.
- Using a resistance band to extend the life.
- Temperature control accuracy± 5℃.
Why choose elman?
- We have more than 15 years of experience in the market.
- Preassembly of furnaces in our manufacturing facilities offers a guarantee of quick, easy and efficient installation in the field.
- Tests carried out at our facilities provide confirmation that all components are in good working order, eliminating problems when commissioning on site.
- We offer automation and material handling solutions.
- Our customers are welcome in our facilities and we encourage them to visit us and observe our testing procedures, in order to give them the peace of mind that they will receive the final product as expected, or even better.
