INDUSTRIAL THERMOCOUPLE

elman manufactures has reliable and robust industrial thermocouple sensors. Thermocouples With Tube provide fast temperature response that can be applied in most temperature measurement and control applications.

industrial-thermocouple

Specification:

  • Element Type : Fe/Const. (J), Cr/Al (K), Cu/Const.(T), Cr/Const.(E), NiCrsil/Nisil(N).
  • No. of Element : Simplex, Duplex.
  • Sheath OD : 3mm to 12 mm.
  • Sheath Length : As per requirement.
  • Sheath Material : MI SS310, MI SS316, MI SS304, MI Inconel 600, Ceramic Tube recrystallized Alumina (6mm to 12mm) (Other on Specify).
  • Insulation : Mineral Insulation, Ceramic.
  • Junction : Ungrounded or Grounded.
  • Head : Die Cast Aluminum head in SS, Single or double cable entry.
  • Gland : ¾”ET, 1/2”NPT, 1/2” BSP, 3/4”BSP, 3/4” NPT.
  • Process Connection : 1/8”BSP (M), ¼”(M), ½” BSP (M) Adjustable Fitting.
  • Head Type : Weather Proof, Flame Proof, Junction Box.

THERMOCOUPLE WITH PROTECTION TUBE

We are one of the reputed organizations engaged in providing superior quality of THERMOCOUPLE WITH PROTECTION TUBE. These Process thremocouple are good demand in the market due to high quality and durability.

Specification:

  • Head : Weatherproof Die Cast Aluminum Head in SS, Single or double cable entry.
  • Sensor : K Type (Cr/Al), R (PtRh 13%Pt), S (PtRh 10%Pt) Ungrounded Sensor.
  • No. of element : Simplex or Duplex.
  • Element Sheath Material : Mineral Insulated SS310 / MI Inconel 600.
  • Element Diameter : 4.5mm to 8mm.
  • Length : As per customer requirement.
  • Insulation : Mineral Insulation.
  • Protection Tube Material : SS 310 , Inconel 600, HRS 446, Ceramic Tube Recrystallized Alumina, Silicon Carbide ,Hastalloy ( Others on specify.
  • Tube Diameter : 16MM to 25MM.
  • Length : 500 MM to 1200MM.
  • Process Connection : ½” Bsp (M) , ¾” BSP (M), 1”BSP(M) Adjustable Fitting.
Thermocouple-with-Protection-Tube

CERAMIC TUBE THERMOCOUPLE

elman manufactures has reliable and robust industrial ceramic tube thermocouple,Thermocouple with Thermowell. Tube Thermocouples provide fast temperature response that can be applied in most temperature measurement and control applications.

Thermocouple-with-ceramic-tube

Specification:

  • Head : Bulk Type Weatherproof Die cast Aluminum Head.
  • No. of Element : Simplex or Duplex.
  • Sensor Type : K Type ( Cr/Al) , R (Pt Rh 13% / Pt ), S (Pt Rh 10% / Pt ) Ungrounded Sensor.
  • Sheath Material : Recrystallized Alumina Tube KER 710, KER 610.
  • Diameter : 12mm to 25mm ( Others available on as per requirement ).
  • Length : 500mm to 1000mm ( Others on specify).
  • Flange Type : Alloy Steel, SS Flange.
  • Flange Dimension : As per Requirement.
  • Holding Tube : SS 304, SS 310, HRS 446.

THERMOCOUPLE WITH THERMOWELL

We are one of the reputed organizations engaged in providing superior quality of THERMOCOUPLE WITH THERMOWELL. These Process thremocouple are good demand in the market due to high quality and durability.

Specification:

  • Head : Weatherproof Die cast Aluminum Head / SS Head.
  • No. of Element : Simplex or Duplex.
  • Sensor Type : K type ( Cr/Al ) Ungrounded Sensor.
  • Element Sheath Material : Mineral Insulated SS310 / MI Inconel 600.
  • Element Diameter : 4.5mm to 8mm Length: 500 to 1200mm.
  • Thermowell Type : Threaded (Process threads NPT, BSP), Flanged (Flanges as per ANSI ),Welded.
  • Thermowell Sheath : Barstock SS310 , Barstock Inconel 600, SS 304Barstock HRS 446 ( Others on specify).
  • Thermowell Diameter : 16mm to 35mm.
  • Length : 200mm to 1200mm .
  • Thermowell wallthickess : 5mm to 14mm.
  • Instrument Connection : ½” BSP (M), ¾” BSP(M) , 1” BSP(M) Fitting.
  • Process Connection : ½” BSP (F), ¾” BSP(F) , 1” BSP(F) Fitting.
  • Flange Dimension : As per requirement.
RTD-with-thermowell

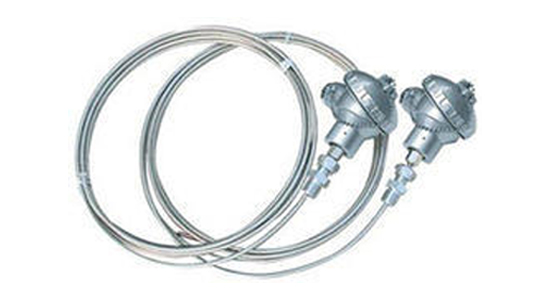

MI THERMOCOUPLE

elman manufactures has reliable and robust industrial MI Thermocouple, Thermocouple with Connector, MI TH for Calibration .MI Thermocouples provide fast temperature response that can be applied in most temperature measurement and control applications.

MI-thermocouple

Specification:

  • Head : Weatherproof die cast aluminum head.
  • No. of Element : Simplex or Duplex.
  • Sensor Type : Fe/Const. (J), Cr/Al (K), Cu/Const.(T), Cr/Const.(E), NiCrsil/Nisil(N).
  • Junction : Ungrounded.
  • Sheath Material : MI SS316, MISS310, MI Inconel 600.
  • Sheath OD : 1,5mm,2mm,3mm,4.5mm,6mm, 8mm,10mm.
  • Sheath Length : 100mm to 10Mtrs (Others on as per requirement).
  • Process Connection : 1/8” BSP(M), ¼”BSP(M), ½”BSP(M) Adjustable Fitting.

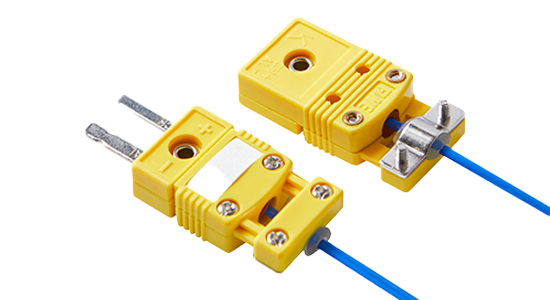

THERMOCOUPLE WITH CONNECTOR

We are one of the reputed organizations engaged in providing superior quality of THERMOCOUPLE WITH CONNECTOR. These Process thremocouple are good demand in the market due to high quality and durability.

Specification:

  • Sensor Type : Fe/Const. (J), Cr/Al (K), Cu/Const.(T), Cr/Const.(E), NiCrsil/Nisil(N).
  • No. of Element : Simplex.
  • Junction : Ungrounded Sensor.
  • Sheath Material : MI SS310, MI Inconel 600.
  • Sensor Diameter : 1.5mm to 12mm
  • Sensor Length : 200mm to 1000mm As per requirement.
  • Process Connection : ¼” BSP(M), ½” BSP(M) Adjustable Fitting.
  • Connector Type : Heavy Duty Bulk Male – Female Connector.
thermocouple-with-connector

MI THERMOCOUPLE FOR CALIBRATION

We are one of the reputed organizations engaged in providing superior quality of MI THERMOCOUPLE FOR CALIBRATION. These Process thremocouple are good demand in the market due to high quality and durability.

MI-thermocouple-for-calibration

Specification:

  • Element Type : K type (Cr/Al).
  • No of Element : Simplex Ungrounded Sensor.
  • Sheath Material : MI SS310.
  • Sheath Diameter : 6mm,8mm.
  • Length : 1000mm.
  • Probe : Nylon Handle / Aluminum Handle.
  • Cable : TF/ TF cable with 2Mtrs Length (Others available on as per requirement).
  • Connector : Miniature type Male – Female Co.

CERAMIC THERMOCOUPLE FOR CALIBRATION

elman manufactures has reliable and robust industrial Ceramic& Exposed bare Wire Thermocouple ,Bare Wire with Connector. Thermocouples provide fast temperature response that can be applied in most temperature measurement and control applications.

Specification:

  • Element Type : K type (Cr/Al).
  • No of Element : Simplex Ungrounded Sensor.
  • Sheath Material : Recrytylized Alumina Ceramic Tube.
  • Sheath Diameter : 6mm.
  • Length : 600mm, 1000mm.
  • Holding Tube : SS304, SS310.
  • Cable : Ceramic cable with 2Mtrs Length.
  • Termination : Connector or Pin type Luge.
ceramic-thermocouple-for-calibration

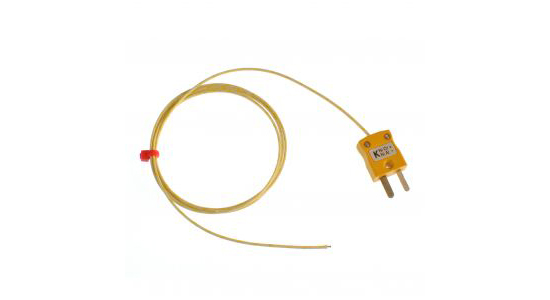

EXPOSED BARE WIRE THERMOCOUPLE

We are one of the reputed organizations engaged in providing superior quality of EXPOSED BARE WIRE THERMOCOUPLE. These Process thremocouple are good demand in the market due to high quality and durability.

exposed-bare-wire

Specification:

  • Element Type : Fe/Const. (J), Cr/Al (K), Cu/Const.(T), Cr/Const.(E).
  • Configuration : Simplex.
  • Tip Diameter : 1.3mm to 2mm.
  • Cable : TF/TF Cable with 2 Mtr,5Mtr, 8Mtr,20Mtr Length (Others on request ).
  • Junction : Exposed.
  • Termination : U type Lug Pin.

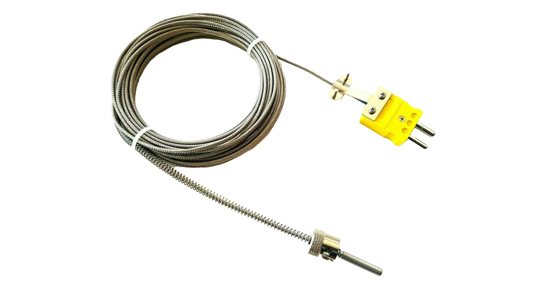

EXPOSED BARE WIRE THERMOCOUPLE WITH CONNECTOR

We are one of the reputed organizations engaged in providing superior quality of EXPOSED BARE WIRE THERMOCOUPLE WITH CONNECTOR. These Process thremocouple are good demand in the market due to high quality and durability.

Specification:

  • Element Type : Fe/Const. (J), Cr/Al (K), Cu/Const.(T), Cr/Const.(E).
  • Configuration : Simplex.
  • Tip Diameter : 1.3mm to 2mm.
  • Cable : TF/TF Cable with 2 Mtr,5Mtr, 8Mtr,20Mtr Length.
  • Junction : Exposed.
  • Connector : Miniature / Standard Male – Female Connector.
exposed-bare-wire-thermocouple-with-connector

ANGULAR TYPE THERMOCOUPLE

elman manufactures has reliable and robust industrial Angular Type Thermocouple, Angular Type Thermocouple for Molten Aluminum. Thermocouples provide fast temperature response that can be applied in most temperature measurement and control applications.

angular-type-thermocouple

Specification:

  • Sensor Type : K Type ( Cr/Al) Ungrounded Sensor.
  • No. of Element : Simplex.
  • Head : Weatherproof Diecast Aluminum Head.
  • Element Sheath Material : MI SS310, MI Inconel 600.
  • Element OD : 4.5mm to 6mm.
  • Length : As per Requirement.
  • Cold Arm Material : GI / SS304 /SS316 Dimension: As per requirement.
  • Hot Arm Material : SS 310 , Inconel 600.
  • Dimension : As per requirement.

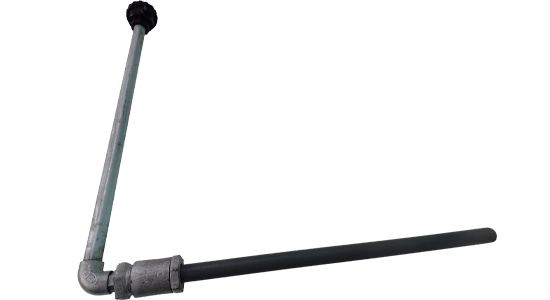

ANGULAR TYPE THERMOCOUPLE FOR MOLTEN ALUMINIMUM

We are one of the reputed organizations engaged in providing superior quality of ANGULAR TYPE THERMOCOUPLE FOR MOLTEN ALUMINIMUM. These Process thremocouple are good demand in the market due to high quality and durability.

Specification:

  • Sensor Type : K Type ( Cr/Al) Ungrounded Sensor.
  • Construction : Simplex.
  • Head : Weatherproof Diecast Aluminum Head.
  • Bare Wire : 18 SWG.
  • Cold Arm Material : GI / SS304 /SS316.
  • Cold Arm Diameter : 22mm.
  • Length : As per requirement.
  • Hot Arm Material : Cast Iron, Graphite, Silicon Nitrate, Silicon Carbide.
  • Hot Arm Diameter : 20mm to 50mm.
  • Length : As per requirement.
angular-type-thermo-couple-with-molten-aluminium

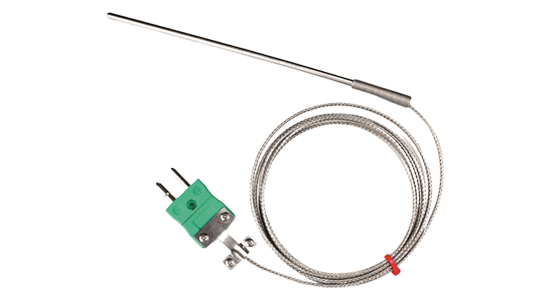

THERMOCOUPLE AND RTD CABLE

elman manufactures has reliable and robust industrial THERMOCOUPLE AND RTD CABLE HEAD MOUNTED TEMPERATURE TRANSMITTER. Thermocouple and Transmitter provide fast temperature response that can be applied in most temperature measurement and control applications.

Thermocouple-with-RTD-Cable

Specification:

  • elman Sensors can extrude, tape, wrap, serve and braid various insulation materials (Teflon FEP, PFA, PTFE, PVC, Kapton, Silicone rubber and Fiberglass) on Thermocouple Wires, Extension Wires and Compensation Wires.
  • Most of our insulated thermocouple wires or extension wires are colored according to ANSI, IEC code, and they can be identified by their color or tracer.
  • The wire sizes of our thermocouple wires are from 8AWG to 40AWG.
  • The temp. range of the insulation materials are from 100 °C to 1200 °C.

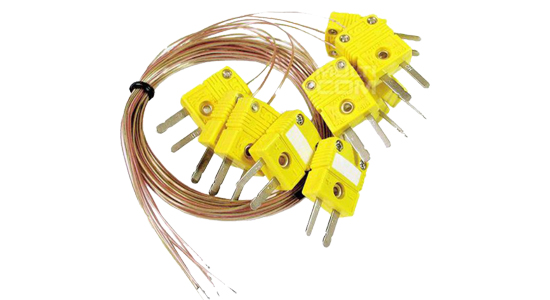

THERMOCOUPLE AND RTD CONNECTOR

Thermocouple connectors are specifically designed to allow thermocouples to be quickly connected and disconnected from the extension wire. The connector pair is composed of a male plug and female jack. The male plug will have two pins for single thermocouples and four pins for dual thermocouples. RTD temperature sensors will have three pins. All thermocouple Connectors can be ordered in Type E, J, K, T, R, S, and B thermocouple calibrations and with ANSI or IEC Color Coded bodies.

Specification:

MINIATURE THERMOCOUPLE RTD CONNECTOR

  • Type : J( Black) , K(Yellow, Green),T( Blue, Brown) E(Purble), N (Pink,Orange), RTD ( 3pin White ).
  • Miniature connectors for thermocouple and RTD circuits. Flat pin design.
  • Accepts wires up to 0.6mm (4.5mm cable Ø max).
  • Suitable for small wires and mineral insulated cables.
Thermocouple-with-RTD-Connector
