Hot air ovens by elman
Size: Based on the customers recommendation or need.

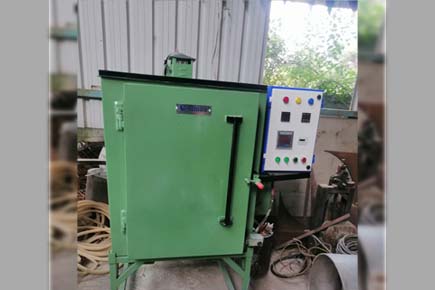

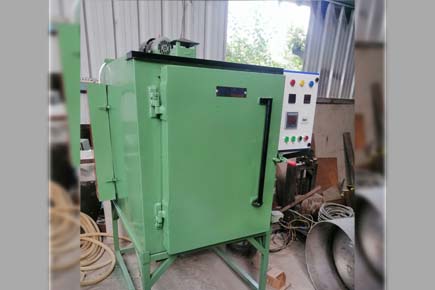

These are sturdy double walled units with outer chamber made of MS sheet duly enamel painted with inner made up of mild steel or SS Sheet. The gap between inner and outer chamber is filled with high-grade glass wool to avoid thermal losses. Beaded heating elements are placed in ribs, at bottom and sides. Inner chamber is provided with ribs for adjusting perforating shelves to convenient height. Temperature is controlled by K-type Thermocouple from ambient to 300℃ + 3℃. A dial thermometer is fitted to the unit for reading the chamber temperature. Air ventilator is also provided on the sides of the unit to work on 220/230 volts A. C. Supply. All units are fitted with air circulation fan as a standard feature.
| Title | Description |
|---|---|
| Temperature | Up to 300° C |
| Chamber design | Rectangular |
| Insulation | Ceramic Fibre Blanket + Brick/Ceramic Fibre Module & Board |
| Size of chamber | As per client requirement |
| Heating Element | A1-Kanthal/Special type alloy resistence |
| material | Mild steel, stain less steel 304,316 or any |
| Instrumentation option | Thyrister ,Programmable Temperature controller, Temperature recorder,HMI |
Related products
Interested to Know further?
Click on get quotes button below
- A Hot air oven can be more speedy then an autoclaves and higher temperature can be achieved as compared to others.
- The operating procedure is simple as compared to other sterilization method.
- Its price is low as compared to autoclaves
- Samples lacking of moisture like powders and oils can be sterilized by hot air
- Higher temperatures can be reached compared to other means
- Drying
- Curing
- Laminating
- Coating
- Heat Treatment
- Aging
- Injectable can be sterilized by hot air oven Annealing
- Comprises double walled construction
- Stable and high performance
- Easy operation & maintenance
- Competitive price & quick delivery
- Temp Accuracy is 30°C to 300°C temperature
- Uniform air circulation across chamber
- Digital temperature controller cum indicator
- Excellent uniformity at high temperature
- Over temperature protection
- Capable of hot air drying & sterilization
- Excellent insulation for protecting the instruments from heat
- High working temperature
