DIGITAL PROCESS TEMPERATURE INDICATOR

Accept input RTD, Thermocouple, Voltage, Current Process – Temperature, Pressure, Humidity, Level Flow, Co2, Air velocity, Diff pressure etc.,

Specification:

Resolution Available : 0.001/0.01/0.1/1
Display Range : -999 to 9999counts
Panel : Wall mounting
Power supply : 230VAC
Large display sizes : 1”,2”,4”,6”,8”etc…
Retransmission output : 4 -20mA optional.
Size available : 48X48 / 96X48 / 48X96 / 72X72 / 96X96,192 X110X65 mm.

HUMIDITY TEMPERATURE INDICATOR

Accept input RTD, Thermocouple, Voltage, Current Process – Temperature, Pressure, Humidity, Level Flow, Co2, Air velocity, Diff pressure etc.,

Specification:

Resolution Available : 0.001/0.01/0.1/1
Display Range : -999to9999counts
Panel : Wall mounting
Power supply : 230VAC
Large display sizes : 1”,2”,4”,6”,8”etc…
Retransmission output : 4 -20mA optional.
Size available : 48X48 / 96X48 / 48X96 / 72X72 / 96X96, 192 X110X65 mm.

JUMBO DUAL INPUT INDICATOR

Accept input RTD, Thermocouple, Voltage, Current Process – Temperature, Pressure, Humidity, Level Flow, Co2, Air velocity, Diff pressure etc.,

Specification:

Resolution Available : 0.001/0.01/0.1/1
Display Range : -999 to 9999counts
Panel : Wall mounting
Power supply : 230VAC
Dual display sizes : 2.3”,4“and6”
Retransmission output : 4 -20mA optional.
Size available : Sizes available as per display size.

JUMBO PROCESS TEMPERATURE INDICATOR

Accept input RTD, Thermocouple, Voltage, Current Process – Temperature, Pressure, Humidity, Level Flow, Co2, Air velocity, Diff pressure etc.,

Specification:

Resolution Available : 0.001/0.01/0.1/1
Display Range : -999 to 9999counts
Panel : Wall mounting
Power supply : 230VAC
Large display sizes : 1”, 2”, 4”, 6”, 8”etc…
Size available : Also available Counter, Timer, Digital Clock.

MULTI CHANNEL INDICATOR

With the help of well-trained professionals, we are engaged in offering MULTI CHANNEL INDICATOR to our clients. The offered indicators are made available in various sizes to cater to the varied customer needs.

Specification:

Resolution Available : 0.001/0.01/0.1/1
Display Range : -999 to 9999counts
Panel : Wall mounting
Power supply : 230VAC
Large display sizes : 1”,2”,4”,6”,8”etc…
Manual selection: 2/4/6/8/10/ 12 points available.
Size available : 96 X 96 mm , 96X192mm, wall- 192X110X65 mm.

MULTI ZONE INDICATOR

Accept input RTD, Thermocouple, Voltage, Current Process – Temperature, Pressure, Humidity, Level Flow, Co2, Air velocity, Diff pressure etc.,

Specification:

Resolution Available : 0.001/0.01/0.1/1
Display Range : -999 to 9999counts
Panel : Wall mounting
Power supply : 230VAC
Large display sizes : 1”,2”,4”,6”,8”.
Manual selection : 2/4/6/8/10/ 12 Zones available.
Size available : Size available as per No of Zone and Display size.

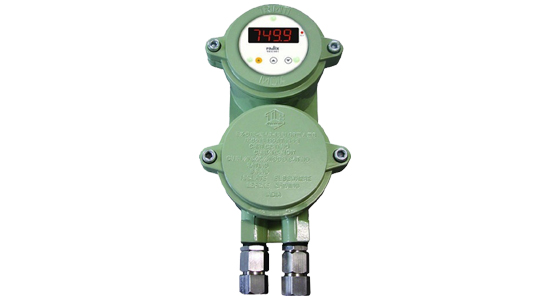

FLAME PROOF INDICATOR

Accept input RTD, Thermocouple, Voltage, Current Process – Temperature, Pressure, Humidity, Level Flow, Co2, Air velocity, Diff pressure etc.,

Specification:

Resolution Available : 0.001/0.01/0.1/1
Display Range : -999 to 9999counts
Panel : Wall mounting
Power supply : 230VAC
CMRI Group : I, IIA & IIB Certified Flame Proof Enclosure.
Retransmission output : 4 -20mA optional.
Size available : 7 Segment LED 0.5 “, optional 1” Display.

DIGITAL MASTER PRESSURE GAUGE

With the help of well-trained professionals, we are engaged in offering DIGITAL MASTER PRESSURE GUAGE to our clients.

Specification:

The Digital Master Pressure Gauge Accept Unit Kg/Cm2,Bar,Psi,Kpa,Mmhg, MMH2O,Inc H2O.
Available Range -1 Bar (-760mm hg) To 700 Bar As Per Customer Requirement.
Calibration Password Protected the Gauge Is an Ultralow Power Microprocessor Controlled, Accurate and Versatile Digital Pressure Instrument.
When Indicate” LO” Sensor Is Open Condition.
The Instrument Is Housed In A Compact Aluminum Anodize Case. 1000 Hours Battery Life 7.5 V DC Battery Operated Recommended Duracell Type Mn1500-Lr6.

DIFFERENTIAL PRESSURE GAUGE

With the help of well-trained professionals, we are engaged in offering DIFFERENTIAL PRESSURE GUAGE to our clients. Many options can be selected to adapt the gauge to specific process or application requirements e.g. medium compatibility, overpressure protection, safety, specific dials etc.

Specification:

Dial sizes: 100 and 150 mm.
Wetted parts stainless steel, monel or hastelloy.
Process connections e.g. G ½, ½ NPT, M20x1,5, etc.
Measuring ranges from 0…10 mbar to 0…25 bar.
Static pressure up to 400 bar.

LOOP POWER INDICATOR

Loop View is a two-wire 4-20mA loop indicator, loop powered and low power. Its excellent precision allows to indicate several measurements like pressure, differential pressure, flow, pH, temperature, acceleration and other.

Specification:

Accuracy : +/-0.1%.
Material : Aluminum Alloy LM6.
Polarity : Auto-detect.
Power : Nil.
Product Type : Loop Powered Indicator.
Dimension : 130x130x110 mm.
Range : Configurable.
Weight : 1 kg.
Mounting Type : Field.

UNIVERSAL PROCESS INDICATOR

With the help of well-trained professionals, we are engaged in offering UNIVERSAL PROCESSOR INDICATOR to our clients. The offered indicators are made available in various sizes to cater to the varied customer needs.

Specification:

Input : Universal [All type of thermocouple and PT100‚ Cu50 (RTD)‚ linear voltage‚ linear current‚ MV‚ 2 wire transmitter input],AC current (0 5 amp.), AC voltage (0 500 volt),Alarm: High‚ low‚ second high and second low(Selectable).
Communication : RS485‚RS232(Plug in type modules).
Retransmission O/P : Linear current or voltage, Power supply: SMPS 100~240VAC‚ 50 Hz.
Accuracy : 0.3%FS± 1 unit.
Display resolution : 0.001°(Selectable).
Other features : Over range and sensor fail output off‚ input offset, Operating ambient : Temp : 10°C~60°C‚ humidity : <90%RH.

AIR VELOCITY, AIR FLOW, DIFFERENTIAL PRESSURE INDICATOR

Measuring Air flow and air velocity Jumbo Indicator, Range -1999 to 9999 and resolution Configurable , 110/230 VAC mains power operated. Wall mountable, alarm optional, Retransmission.
