Data Acquisition System and Recorder

www.elmanfurnace.com

ELECTRONIC CIRCULAR CHART RECORDER

We are one of the reputed organization engaged in providing superior quality ELECTRONIC CIRCULAR CHART RECORDER.

Circular-chart-recorder

Specification:

  • Accept input RTD, Thermocouple, Voltage ,
    Current Process – Temperature Pressure, Humidity ,Level Flow,Co2, Air velocity, Diff pressure etc., .
  • Optional for with and without Display Also available single pen and Dual Pen.
  • Operating Voltage : 110 VAC or 230 VAC.
  • Chart speed : 8 /24/168 hours ( shift/ Daily/Weekly).
  • Chart Size : 150mm or 300 mm.
  • pen red and blue :  External power supply for transmitter optional.
  • Cutout size : 225X225mm (150mm) & 372X417 mm

ELECTRONIC STRIP CHART RECORDER

We are one of the reputed organizations engaged in providing superior quality ELETRONIC STRIP CHART RECORDER.

Specification:

  • Accept input RTD, Thermocouple, Voltage, Current Process – Temperature, Pressure, Humidity ,Level Flow,Co2, Air velocity, Diff pressure etc., .
  • Optional for with and without Display.
  • Also available single pen and 2/3/6/12 point (Input).
  • Operating Voltage : 110 VAC or 230 VAC.
  • Chart speed : 20 mm/ hour and up to 200 mm/ hour.
  • Optional Chart Size : 120mm or 180 mm, pen and multicolor ribbon External power supply for transmitter optional.
  • Cutout size : 208 X266 mm.
Strip-chart-recorder

CHART RECORDER PEN, RIBBON AND CHART

We are one of the reputed organization engaged in providing superior quality CHART REORDER PEN, RIBBON AND CHART.

Ribbon-Chart-recorder

Specification:

  • Multicolor Ribbon, Red/Blue/Green.
  • Pen And Strip chart (Roll/ Z folder).
  • Circular Chart (weekly, Daily, Shift) 168/24/8 Hours Strip.
  • Chart size : 100mm, 120mm, and 180mm.
  • Circular chart size : 150mm, 300mm Customized chart.
  • Pen also available This Spares suitable for Tempsen, RR, sietex Recol, Honeywell, yokogawa , shinko, Chino recorders.
  • Ranges available -200 to 1200 % and °C,°F.
  • Option with circular / strip Recorder.

PROCESS DATA LOGGER

We are one of the reputed organizations engaged in providing superior quality PROCESS DATA LOGGER.

Specification:

  • Accept Input RTDS, Thermocouples, Voltage, Current Process – Temperature, Pressure, Humidity, Level Flow, Co2, Air Velocity, Diff Pressure Etc.,
  • 1000 Readings Per Channel Memory With RTC.
  • Display Range -1999 To 9999 Counts.
  • 1-24 Channels Scan Time, Print Time, Skip, Offset.
  • Input Selectable Available With Large Display Sizes 2” And 4”.
  • Communication RS232, RS 485.
  • USB And Direct Printer Port Size 8 And 16.
  • Channels 96x96mm and 24 Channels 96x192mm.
Process-data-logger

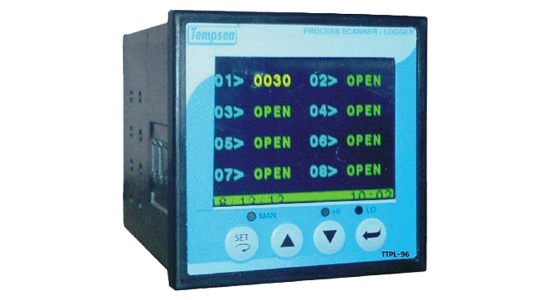

PROCESS TFT DATA LOGGER

We are one of the reputed organizations engaged in providing superior quality PROCESS TFT DATA LOGGER.

TFT-data-logger

Specification:

  • Accept input RTDs, Thermocouples, Voltage, Current Process – Temperature, Pressure, Humidity, Level Flow,Co2, Air velocity, Diff pressure etc., .
  • 1000 Readings Per channel Memory with RTC.
  • Display Range: -1999 to 9999 counts.
  • Real time, Print time, Offset, Input.
  • Range selectable Available with Large display sizes 2” and 4”.
  • Communication RS232, RS485, USB and Direct Printer port TFT.
  • Display Sizes: 96X96mm up to 16 channels available.

DIGITAL MULTI CHANNEL TEMPERATURE SCANNER

We are one of the reputed organizations engaged in providing superior quality DIGITAL MULTI CHANNEL TEMPERATURE SCANNER.

Specification:

  • Accept Input RTD, Thermocouple (J and K) RTD/ -99.9 to 550.0 º C, J/ 0-600 º C, K/ 0-1250 º C.
  • Auto and Manual scanning Selectable.
  • Display Four for Temperature Two for Channel Skip.
  • Offset -99.9 to 99.9 º C all channels Selection can be select feather touch keys.
  • Power supply : 230 V AC.
  • Mains operated Scan time : 1-99 secs.
  • Selectable Size : 96X96mm.
  • Channels available : 2/4/6/8.
Temperature-scanner

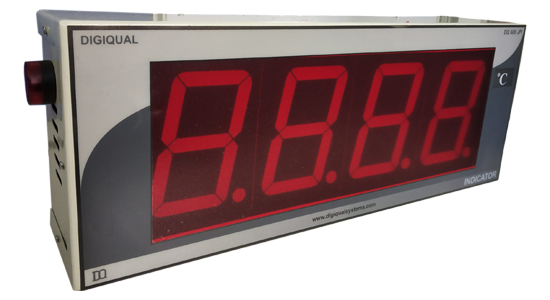

JUMBO LARGE DISPLAY PROCESS SCANNER

We are one of the reputed organizations engaged in providing superior quality JUMBO LARGE DISPLAY PROCESS SCANNER.

Jumbo-process-scanner

Specification:

  • Accept input RTDs, Thermocouples, Voltage, Current Process – Temperature, Pressure, Humidity, Level Flow, Co2, Air velocity, Diff pressure etc.
  • 1000 Readings Per channel.
  • Memory with RTC Display.
  • Range : -1999 to 9999 counts.
  • Real time, Print time, Offset,  Input.
  • Range selectable Input through Data logger / Paperless Recorder.
  • Communication : RS232, RS 485, USB.
  • Display Sizes available : 2 “, 4” and 6”.

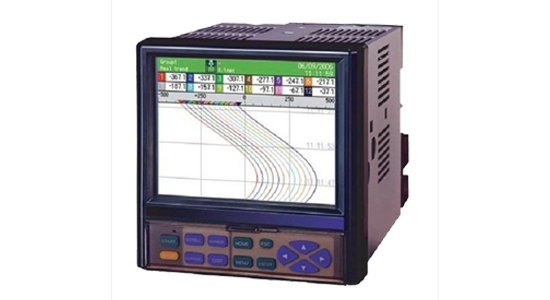

UNIVERSAL TFT PAPERLESS RECORDER

We are one of the reputed organizations engaged in providing superior quality UNIVERSAL TFT PAPERLESS RECORDER.

Specification:

  • Accept input RTDs, Thermocouples, Voltage, Current Process – Temperature, Pressure, Humidity, Level Flow, Co2, Air velocity, Diff pressure etc., .
  • 1000 Readings Per channel Memory with RTC.
  • Display Range -1999 to 9999 counts Real time, Print time, Offset, Input.
  • Range selectable Available with Large display sizes 2” and 4”.
  • Communication RS232, VRS485, USB and Direct Printer port TFT.
  • Display Sizes 5.7”, V7.5”,9.2”,15” with 1 …80 channels available.
TFT-paper-less-recorder

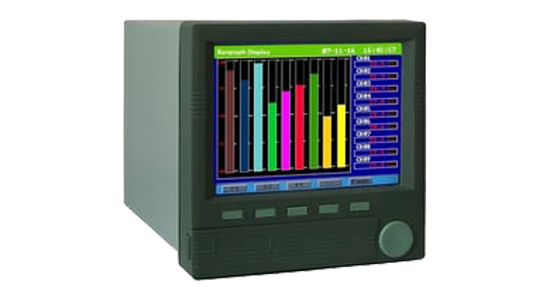

COLOR PAPERLESS RECORDER

We are one of the reputed organizations engaged in providing superior quality COLOR PAPERLESS RECORDER.

Colour-paper-less

Specification:

  • Accuracy : ±(0.2%FS+1) digit.
  • Power supply : 100-240 V AC;24 V AC.
  • Display : 5.6inch,320*240ColorLCD.
  • Input Signal : T.C: K, S, E, J, T, B, N, R, WRe526,            WRe325,RTDPT100,CU50,CU100.
  • Linear voltage : 0-5V, 1-5V, Linear current: 0-10mA, 4-20mA, Frequency.
  • input : 0-5 KHZ,one.
  • Channel Others : 0-20mV, 0-60mV, 0-100mV, 0-500mV.
  • Output Module : 16 channels relay alarm output (Max), 4-20mA.
  • Environmental temperature : 0-50℃.
  • Environmental humidity : 0-85%RH.
  • Size : 144x144x180mm.

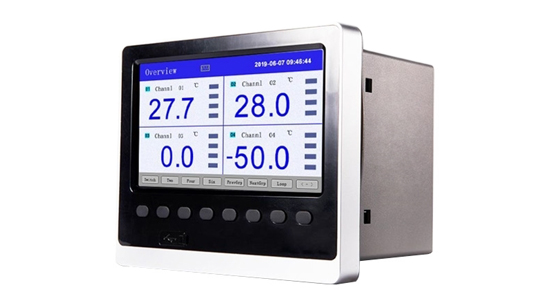

TRUE COLOR PAPERLESS RECORDER

We are one of the reputed organization engaged in providing superior quality TRUE COLOR PAPERLESS RECORDER.

Specification:

  • Accuracy : ±（0.2%FS+1）digit.
  • Power supply : 100-240VAC;24VAC.
  • Display : 5.6inch,320*240ColorLCD.
  • Input Signal T.C:K,S,E,J,T,B,N,R,WRe526,WRe325,RTD:PT100,CU50,CU100.
  • Linear voltage : 0-5V,1-5V,Linear current: 0-10mA, 4-20mA,Frequency, input :0-5KHZ, input :0-5KHZ, one
    Channel, Others : 0-20mV,0-60mV,0-100mV,0-500mV.
  • Output Module : 16 channels relay alarm output (Max).
  • DC5V/12V/24VDC aux. power supply USB port.
  • Record Time : 45days.
True-color-paperless

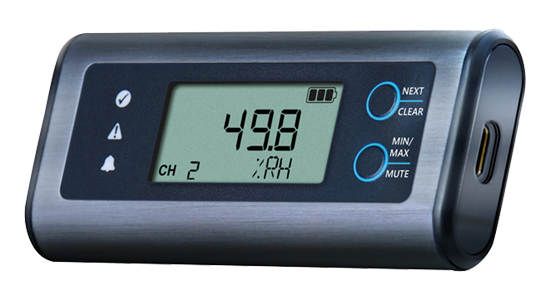

PORTABLE HUMIDITY TEMPERATURE LOGGER

We are one of the reputed organization engaged in providing superior quality PORTABLE HUMUDITY TEMPERATURE LOGGER.

Humidity-temperature-logger

Specification:

  • Measures relative humidity.
  • Temperature and dew/frost point.
  • Range of application ; -10…60°C with 0… 100%RH.
  • Freely selectable logging interval 5 s…1 h.
  • 20000 data point memory with date & time stamps.
  • Psychro metric calculations of dew and frost point values available.
  • FDA 21 CFR Part 11 / GAMP 4 compliant Adjusted at 23°C and 10,35,80%rh Interface (UART).
  • USB for connection to PC Highest accuracy at 0.8 %rh and 0.2 °C Long Life Battery.

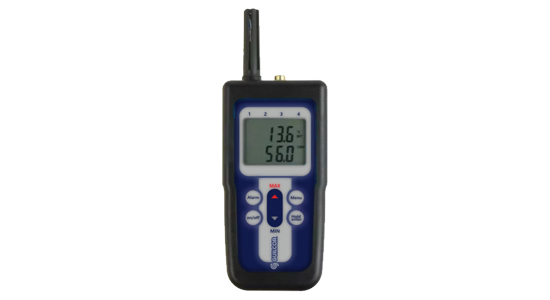

PORTABLE HYDRO THERMOMETER AND LOGGER

We are one of the reputed organization engaged in providing superior quality PORTABLE HYDRO THERMOMETER AND LOGGER.

Specification:

  • Measures relative humidity.
  • Temperature and dew/frost point Range of application; -10…60°C with 0… 100%RH.
  • Freely selectable logging interval.
  • 5 s…1 h 20000 data point memory with date & time stamps.
  • Psychro metric calculations of dew and frost point values.
  • Available FDA 21 CFR Part 11 / GAMP 4 compliant.
  • Adjusted at 23°C and 10,35,80%RH Interface (UART).
  • USB for connection to PC Highest accuracy at 0.8 %RH and 0.2 °C.
  • Long Life Battery.
Hydro-thermometer

USB DATA LOGGER

We are one of the reputed organization engaged in providing superior quality USB DATA LOGGER.

usb-data-logger

Specification:

  • 4-digit LCD display and direct USB connectivity.
  • Real-time LCD data display Dust and water resistant.
  • Power supply (230 VAC,110 V AC,24 V DC).
  • External relay for Alarm.
  • Communication, with Large Display.
  • Windows based software, No Of channels, size.
  • Common alarm, Print time (sec/Min)
  • Thermocouples, RTDs, Transmitters with Enclosure etc., .

FOUR CHANNEL DATA LOGGER

We are one of the reputed organization engaged in providing superior quality FOUR CHANNEL DATA LOGGER.

Specification:

  • Features : LCD with Back light 4Channel Simultaneous.
  • Display : Huge Memory of 64,000 records.
  • Range:-200C~1370C.
  • Resolution : -200C~200C, 0.1C200C~1370C, 1C.
  • Accuracy : 0.5% reading + 1.
  • Input Protection : 60VDC or 24VrmsAC.
  • OperationTemp : 0Cto50C.
  • Storage Temp : -20 C to 50.
Four-Channel-data-logger
