Pit Type Furnace
“ELMAN HAS BEEN DESIGNING, ENGINEERING AND MANUFACTURING INDUSTRIAL FURNACE AND HEAT TREATMENT EQUIPMENT FOR 15 YEARS”
www.elmanfurnace.com
Pit Type Furnace by elman
We are an esteemed organization engaged in providing an extensive range of quality Pit Type Hardening Furnace manufactured with high quality materials with assurance of high reliability, stability, strength and long lasting features which we have in extensive demand in the market. We are well known in the market for our quality products at affordable prices and on time deliveries.
We provide a versatile number of Pit Type Tempering Furnace having assured super quality material blended by our team of efficient and highly reliable engineers and other work forces. The furnaces provided by us are made from the best-in-class raw materials which we acquired from our reliable vendors. We are very known in the market for our super quality productivity at affordable prices and on time deliveries.
WHAT IS THE FUNCTION OF RECIRCULATING FAN?
In order to enhance the convection heat transfer and temperature uniformity one axial flow type re-circulating fan is provided. The fan is located centrally on the lid cover of the furnace. The fan impeller and shaft will be made of AISI-310. The fan is having insulated plug and assembled to facilitate removal as a complete unit.
Specification
| Title | Description |
|---|---|
| Temperature Range | Up to 950°C |
| Chamber Design | Cylindrical |
| Insulation | Ceramic Fibre Blanket + Brick/Ceramic Fibre Module & Board |
| Heating Media Options | Electric/Gas Fired/Oil Fired |
| Heating Elements | Nichrome 80/20 / A1-Kanthal |
| Furnace Classification | Class 2/Class 3 |

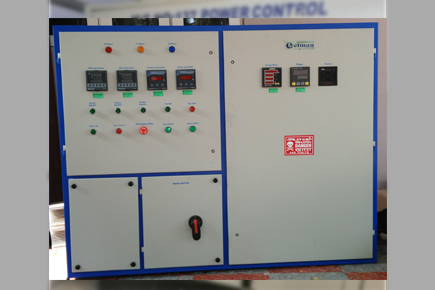

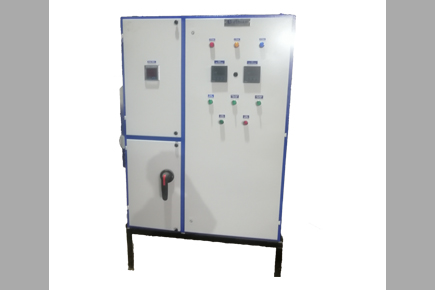

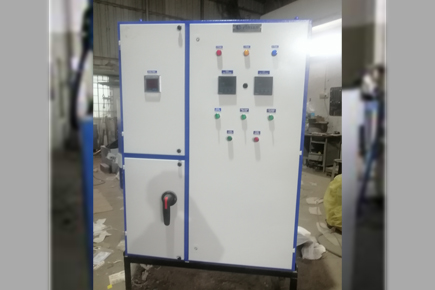

| Instrumentation options | Thyristor, Programmable Temperature Controller, Temperature Recorder |
Related products
Interested to Know further?
Click on get quotes button below
- Pit furnaces provide a wide range of thermal processes for typically far less cost than other types of furnaces.
- Unique ability to provide more than just one thermal process.
- It Require much less service time.
- Annealing/Annealing under protective atmosphere
- Isothermal Annealing
- Carbonitriding
- Carburizing
- Decarb annealing
- Gas Nit riding
- Hardening
- Stress Relieving
- Regulates Smooth Working
- Maintains Pressure
- Maintains Smooth Flow
- Overwhelms Friction
- Compact Design
Why choose elman?
- Custom designs available, offering the uniformity required for each type of process.
- Pit furnaces are suited to heating long tubes, shafts and rods by holding them in a vertical position.
- Manual or automatic controls meeting the requirements of AMS-2750 can be provided as requested.
- Companion equipment including washers, temper furnaces, gas generators, loading systems and quenches.
- Top or bottom load supports available.Hydraulic cover lift and rotate systems available.
- Clients are welcome to visit our facilities to learn more about our testing procedures.
