BLACK BODY CALIBRATOR

We realise customized BLACK BODY CALIBRATOR to offer the ideal solution for your calibration application.

black-body-calibrator

Specification:

  • Thermal imaging cameras, FPA (focal plane arrays), and spectrometers in the temperature range from –15 °C to 110 °C.
  • A serial interface RS485 (optional USB adapter) enables the control of the black body via a PC
  • Digital PID controller and precision platinum resistance thermometer PT100 provide excellent accuracy and stability.
  • Optional dry air or nitrogen purge reduces condensation at low operating temperatures
  • The BBS110-TE offers fast slew rates, high emissivity and uniformity.

HUMIDITY TEMPERATURE CALIBRATOR

We realise customized HUMUDITY TEMPERATURE CALIBRATOR to offer the ideal solution for your calibration application.

Specification:

  • Range RH : 5 to 95% RH@ 10 to 50°C.
  • Dew/Frost Point : -40 to 60°C (-40to140°F).
  • Accuracy RH : ±0.5% RH @±0.2°C.
  • Slew Rate : 1.0°C(1.8°F)/secmax,above0°C.
  • Repeatability : ±0.5%.
  • Outputs : Analog ( 0 to 5 V dc or 4 to 20 mA) and RS232C.
  • Power Requirements : 100 to 240 V ac, 50 to 60 Hz, 150 W maximum.
  • Sample Flow Rate : 1 liter/min (2.0 SCFH).
  • Operating Temperature (Control Unit): 0 to 50°C (32 to 122°F).
  • Weight : 15.4 kg (34 lbs).
  • Dimensions: 52 W x 43.7 D x 21.7 cm H (205/8 W x 173/16 D x 89/16″ H).
  • Enclosure: Ultra high-impact copolymer carrying case.
Humidity-temperature-calibrator

HIGH TEMPERATURE CALIBRATION BATH

We realise customized HIGH TEMPERATURE CALIBRATION BATH to offer the ideal solution for your calibration application.

High-temperature-calibrator

Specification:

  • The RTCH are insulated with high alumina insulation brick work.
  • Ceramic fiber mat to reduce the radiation heat loss to Minimum.
  • This is suitable for thermocouple and Rtd sensors calibration Meth od of master Comparison.
  • High accuracy temperature controller With Tyristor based control circuit.
  • The RTCH heated by kanthal A1 Heating coils.
  • Insulation with high quality superior quality ceramic fiber Blanket.
  • The temperature inside is maintained any desired level with in the operating range by a digital automatic PC based temperature controller.
  • Available Ranges 50 °C … 300°C, 600°C and 1200°C.

LOW TEMPERATURE CALIBRATION BATH

We realise customized LOW TEMPERATURE CALIBRATION BATH to offer the ideal solution for your calibration application.

Specification:

  • This is suitable for Low Temperature Sensor, Indicator and Rtd sensors calibration Method of master Comparison.
  • High accuracy temperature controller With Tyristor / Contactor based control circuit.
  • The RTCL Cooled by High Quality Compressor and Maintain Temperature use Heater.
  • Insulation with high quality superior quality Insulator.
  • The temperature inside is maintained any desired level with in the operating range by a digital automatic PC based temperature.
  • Controller Available Ranges -80 °C ,-40°C, -20°C … 50°C.
Low-temperature-calibrator-bath

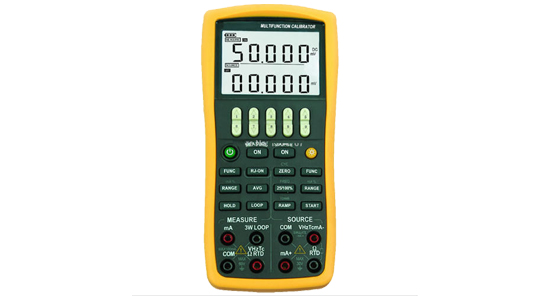

MULTIFUNCTION PROCESS CALIBRATOR

We realise customized MULTIFUNCTION PROCESS CALIBRATOR to offer the ideal solution for your calibration application

Multifunction-calibrator

Specification:

  • Multifunction Process calibrator source and measure Temperature functions.
  • Thermocouples and RTDs Frequency.
  • Ohms, mV, Voltage, current , loop power Available models 11,14,15 Series Adopt ITS 90 Temperature Scale .
  • Used 6 digit LCD display with backlight Good accuracy 0.02 %.
  • Battery Power operated RTC for Thermocouple Calibration 4 X1.5 VDC Alkaline.
  • Battery for long life.

MULTIFUNCTION PROCESS MULTIMETER

We realise customized MULTIFUNCTION PROCESS MULTIMETER to offer the ideal solution for your calibration application.

Specification:

  • Displays 15-minute averaged measurements (bimetallic function).
  • Peak value storage and display (drag-pointer function).
  • User selectable standard current transformer ratios.
  • Automatic sequencing of displayed parameters automatically at 10 second intervals, or manually.
  • Large 3-line, 4-digit, 7-segment red LED digital display.
  • Measurement mode indicated by LED’s .
  • Easy to install and operate.
  • Plug-in spring clamp connectors.
  • Compact: 65 mm depth
  • Peak value storage and display.
  • 15-minute averaged measurements.
Multifunction-process-multimeter

DIGITAL PRESSURE CALIBRATOR

We realise customized DIGITAL PRESSURE CALIBRATOR to offer the ideal solution for your calibration application.

Digital-calibrator

Specification:

  • The pressure Calibrator with Digital Pressure Gauge The calibrator suitable for Pressure Gauge Calibration.
  • Available Range -1 Bar ( -760mmHg) to 700 Bar as per Customer requirement.
  • Calibration Password protected.
  • The Gauge is an Ultralow Power microprocessor Controlled.
  • Accurate and versatile Digital Pressure Instrument.
  • Thermal drift operational amplifier ensures good stability.
  • Calibration Point can be set very accurately.
  • RPGC are available in many models. When Indicate” LO” sensor is open condition.
  • The instrument is housed In a compact Aluminum Anodize case.
  • 1000 Hours Battery Life 7.5 VDC Battery Operated Recommended DURACELL type MN1500-LR6.
